Retired Designs

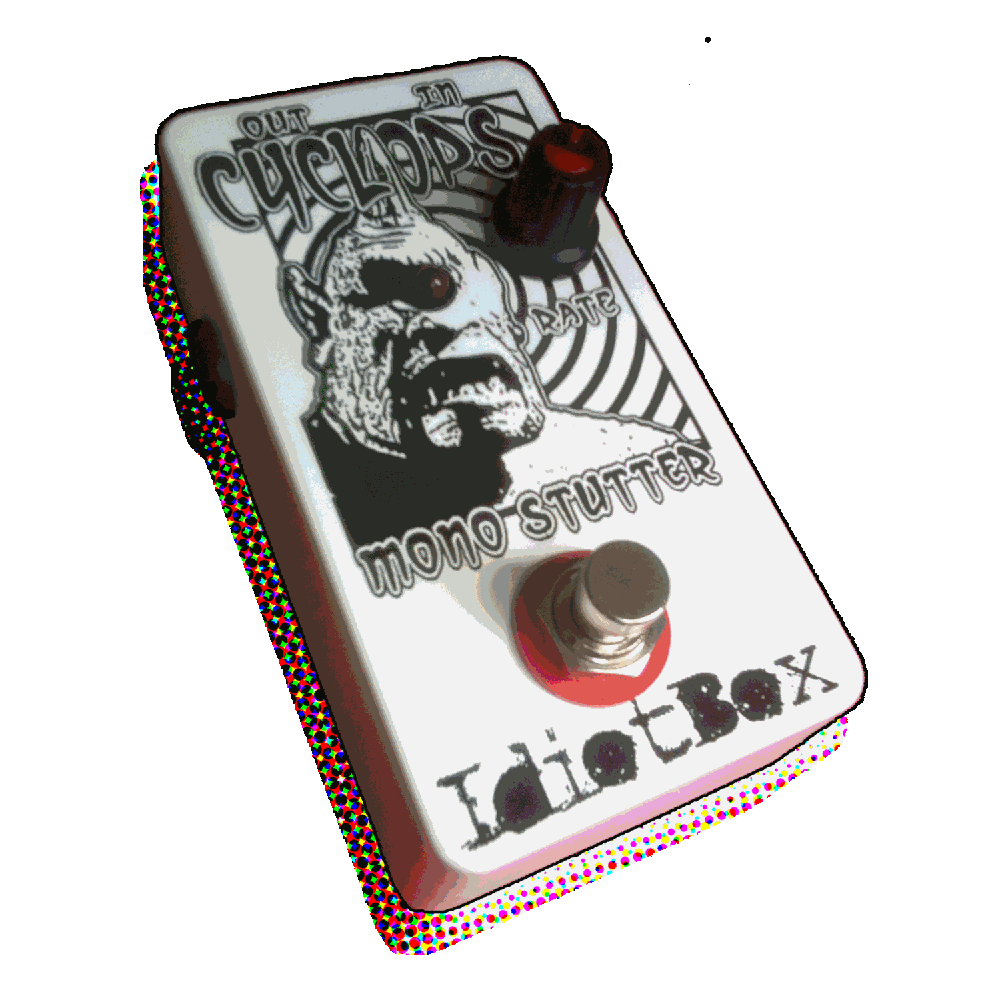

CYCLOPS MONO STUTTER
The Cyclops Mono Stutter was the Mad Doctor’s smaller, simpler little brother. All the great vactrol controlled ON/OFF switching of the MD, but stripped down to just the basics. One -RATE control set to a constant 50% ON, 50% OFF ratio.
Mad DR. WHO STUTTER
The Mad Dr. Who Stutter was the same rad effect as the Mad Doctor Stutter but with killer Tom Baker Dr. Who graphics! It was only available in a very limited quantity!
BLENDER
The Blender was simple. The Blender was effective. The Blender was just what you needed if you're into that sort of thing. The Blender let you add a clean blend to any pedal. It was simple. It was effective. It was just what you needed if you're into that sort of thing.
Input, Output, Send, Receive, knob to the right more clean, knob to the left more blend. It was simple, effective and just what you needed if you're into that sort of thing.
ORANGE CYCLE
The Orange Cycle was a super fun 8 step square wave sequencer where each step had its own tone frequency control adjustable from high pitch blip to super low buzz and everywhere in between. The -SPEED knob when sped to the max would result in some really neato 80s arcade noises or could be dropped down for some slow and low Atari 2600 lo-fi synth bass riff radness! For even more control the -MASTER TONE would change the pitch of all 8 steps at once! The -FILTER knob was your standard low pass filter control which is helpful in smoothing out those square waves if you’re into that sort of thing. The -VOLUME knob is hopefully self explanatory, and there is also a reset button that when pressed starts the step sequence from the beginning as well as a mute button. This noise box was fun as hell and would have make a nice addition to any noise/drone makers arsenal and could also sync to any synth that outputs a clock signal. Worked awesome with the Korg Monotribe and even with Korg’s SyncKontrol Iphone app!
RAINBOTRON
The Rainbotron was a super fun noise box that utilized 6 cascading LEDs the color of the rainbow to interact with a light sensitive tone control. The main knob controled the speed of LED cycle and placing your hand over it blocked the outside light and let the LEDs take control. But it didn't sound like your normal run of the mill square wave generator. The Rainbotron broke the tone shifts into more melodic notes and the ultra bright LEDs were rad as hell on a dark stage or room. Other features were an ON/OFF combination Volume control and a kill switch. It even came in a sparkly box! You could have been the coolest dude at the noise party with your Rainbotron. I’ve seen it happen!
UFO
Ebay is full of simple oscillator box designs homebrewed by the amateur solder soldier. The UFO had those humble origins too, starting with a simple square wave generator and adding a subtle tone control, a knob for pitch and a knob to control a second square wave oscillator to crossmod the main square wave. So you got repeating, stuttering square waves that could dive low and throb some deep bass or be pitched up high for crazy arcade game sounds, or modulated to distort and make the signal more complex. You even had a kill button that you could use to mute the signal at random. What was different about the UFO is that IdiotBox makes it, so it’s RELIABLE and in a metal pedal enclosure so it can take a beating. The sort of instrument you can really WAIL on in the middle of a hot, sweaty, stage-jumping set and not worry it’s gonna fall apart.
DIMENSION X DELAY
The Dimension X Delay totally rules and does exactly what you think it will.
On its own its a standard delay with the ECHO controlling the repeats and the TIME controlling the delay time.
But where this thing gets interesting is the MODULATION control. Click it on and choose between square and triangle wave control over the TIME resulting in sweet warbly, Twilight Zone echoey goodness! Depending on which SHAPE and SPEED setting, it can go from a cool psychedelic leslie type vibe to a creeped out "whats in that old baby carriage in grandma's back bedroom" spookiness!
In keeping with the theme I didn't clean this one up, so its got some dirt and scratch to it in the slower non-modulated speeds. I also left a good chunk of high to infinite repeats on the TIME control for those awesome roaring 50's Sci-Fi sounds that the noise dudes love.
Oh yeah and it glows in the dark too!!!
HOLY TROOPER FUZZ
No knobs, no internal trim pots, no LED, no appologies. Have faith.
TK421
The TK421 is the same maximizer circuit I added to the Blower Box to get the LandPhil circuit. It most definitely kicks it up another 3 or 4 quads per channel, but that's really technical talk and doesn't really concern you. All you need to know is that It kicks. It turns. It curls up your belly and makes you wanna freaky deaky. And yes, you need all that bass.
LAZER PHAZER (Limited run of 13)
The Lazer Phazer is an oscillating square wave fuzz. It is very similar to the Lazer Fuzz but with sweeping frequency action! The FREQ knob controls the frequency range, the SPEED knob controls the speed of the sweep and the VOL knob controls the output volume. There is no need to set this Phazer to Stun or Kill because it is hardwired set to RAD!!!
-D4 DISTORTION
The -D4 was a straight-up distortion pedal. Muthafukka say wha? That ain’t cool and booteek! It should be a non-coloring transparent overdrive or some other bullshit internet forum descriptor. Well, this was exactly what it said. A good distortion pedal that had plenty of volume and gravelly gain on tap with a true tone that will boost or lower highs. At high gain it can get a little muffy, at lower gain it is looser and can work as an overdrive with a bit of chest hair on it or even tap into rodent territory. Hitting a hot tube amp with the -D4 gives it some serious \m/etal vibes, almost like a JCM 800. ROCK N ROLL!!!
LAZER FUZZ
The Lazer Fuzz was a unique square wave filtered fuzz that is sure to impress your gear and Sci-Fi nerd friends all at once with its dashing Han Solo graphics and flickering lazer LED!
The -FREQ knob controls the wave frequency tone, the “glitch” switch controls the lo-fi tracking of the frequency divider and the -VOL knob controls the output volume and can go from Jack White grainy fuzz to that high tone Blacksploitation fizzy fuzz that always puts your girl in the mood. This sucker blasts and all who see this on your board will be sure know that you always shoot first! Works killer on bass too!
SUPER BASS-O-MATIC '76
How many times has this happened to you? You have a bass, and you're trying to find an exciting new way to play it. You could just give up, head to the pawn shop and trade it for some power tools, but why bother, now that you can use IdiotBox's amazing new sonic tool, the Super Bass-o-Matic '76.
Here's how it works: Get a bass, and drop the bass - that's the whole bass - into the Super Bass-o-Matic '76. Then plug that into your favorite fuzz or distortion. Now, adjust the control dials so that the bass is wah and envelope filtered and blended just the way you like it.
Wow, that's terrific bass!
NFLTRTR
The NFLTRTR was a deconstructed version of the filter section of the WHORES. Fuzz Freq. It is two slightly different cocked wah resonant type filters that can be used with and against each other for all kinds of rad cocked wah filtered tones. Use the expression jack to get some sweet sweepable wah/anti-wah action!
POWERBOOST
The PowerBoost was my take on the old Colorsound Power Boost. Its a boost, its an overdrive, it is dirty, it is raw, it is loud and it is all POWER! I've added a charge pump to get it pretty close to the original 18v with a 9v supply and modified the EQs so you can get it nice and crispy with really solid low undertones without the typical compressed sound of other similar effects.
If you are looking for any cliche adjectives like "transparent" or "clean" this is not for you. If you want to sound like 10 dirty, raw amps on 11 then check this mother out!!!
MAD DOCTOR
The Mad Doctor Stutter was not a square wave tremolo. It is an automatic kill switch machine that cuts the signal at controllable intervals . The -RATE knob controls the speed rate of the ON/OFF switching adjustable from really really slow to super super fast, while the -RATIO control slews the amount of ON vs. OFF. With the -RATIO knob maxed there is less on and more off and gets rad and blippy. Back the -RATIO knob off and it results in more ON signal and less OFF. I have had lots of folks tell me this is the pedal they have been searching for for years. Oh and what's super awesome is that it has an expression pedal input so you can change the speed rate on the fly making for some very interesting and unique sounds!
